Kia Rio: Rear Wiper/Washer / Rear Washer Motor
Repair procedures
| Inspection |
| 1. |
With the washer motor connected to the reservoir tank, fill the reservoir tank with water.
|
| 2. |
Remove the engine room under cover. D 1.4 U2 TCI (Refer to Engine Mechanical System - "Engine Room Under Cover") G 1.0 T-GDI KAPPA (Refer to Engine Mechanical System - "Engine Room Under Cover") G 1.2 MPI KAPPA (Refer to Engine Mechanical System - "Engine Room Under Cover") G 1.4 MPI KAPPA (Refer to Engine Mechanical System - "Engine Room Under Cover") |
| 3. |
Remove the front wheel guard [RH]. (Refer to Body - "Front Wheel Guard") |
| 4. |

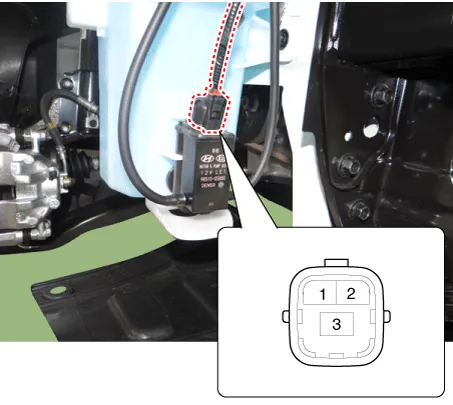

Connect positive (+) battery cables to terminal 3 and negative (-) battery cables to terminal 2 respectively. |
| 5. |
Check that the motor operates normally and the washer motor runs and water sprays from the front nozzles. |
| 6. |
If they are abnormal, replace the washer motor. [Front & Rear washer]
|
