Kia Rio: Interior Trim / Rear Transverse Trim
Components and components location
| Component Location |

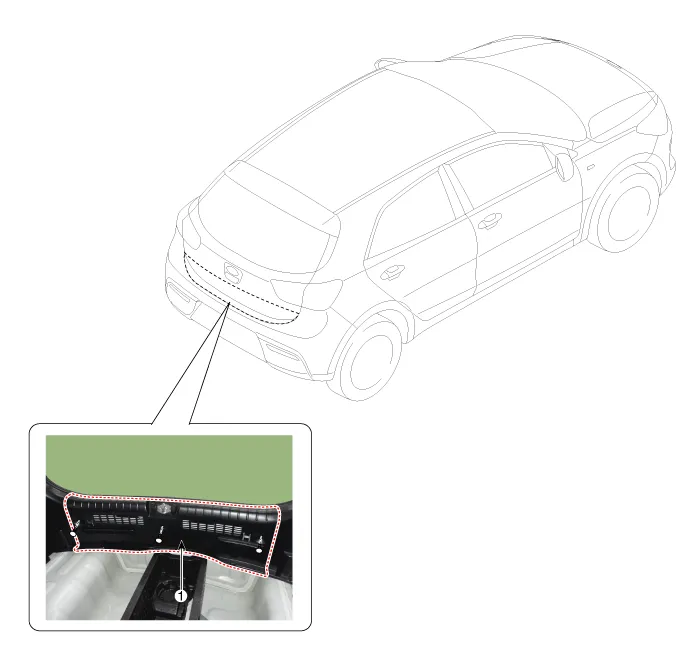

| 1. Rear transverse trim |
Repair procedures
| Replacement |
Put on gloves to protect your hands. |
|
| 1. |

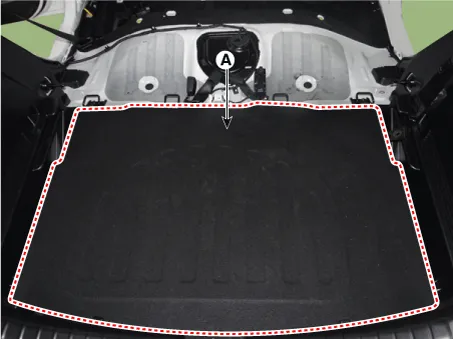

Remove the luggage covering (A).
|
| 2. |
Disconnect the tailgate weatherstrip. |
| 3. |

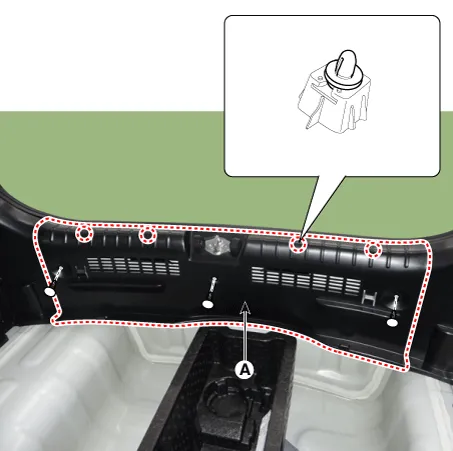

Remove the rear transverse trim (A).
|
| 4. |
Install in the reverse order of removal.
|
Components and components location Component Location 1. Center pillar lower trim 2. Center pillar upper trim Repair procedures Replacement [Center pillar lower trim] Put on gloves to protect your hands.
Components and components location Component Location 1. Luggage side trim Repair procedures Replacement Put on gloves to protect your hands.
