Kia Rio: Rear Suspension System / Rear Coil Spring

Kia Rio 2017-2023 YB Service Manual / Suspension System / Rear Suspension System / Rear Coil Spring

Repair procedures

Removal
1.

Remove wheel nuts, rear wheel and tire from rear hub.

Tightening torque:

107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)



Be careful not to damage to the wheel nuts when removing the wheel and tire.

2.

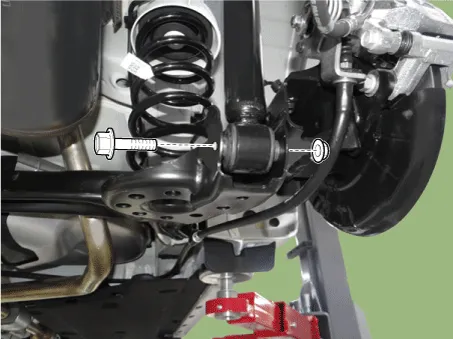

Loosen the shock absorber lower bolt.

Tightening torque:

98.0 - 117.6 N·m (10.0 - 12.0 kgf·m, 72.3 - 86.7 lb·ft)



Set up the transmission jack under the torsion beam in order to remove the shock absorber in no-load condition.

3.

Remove the rear coil spring.

4.

Install in the reverse order of removal.
