Components and components location

Component Location

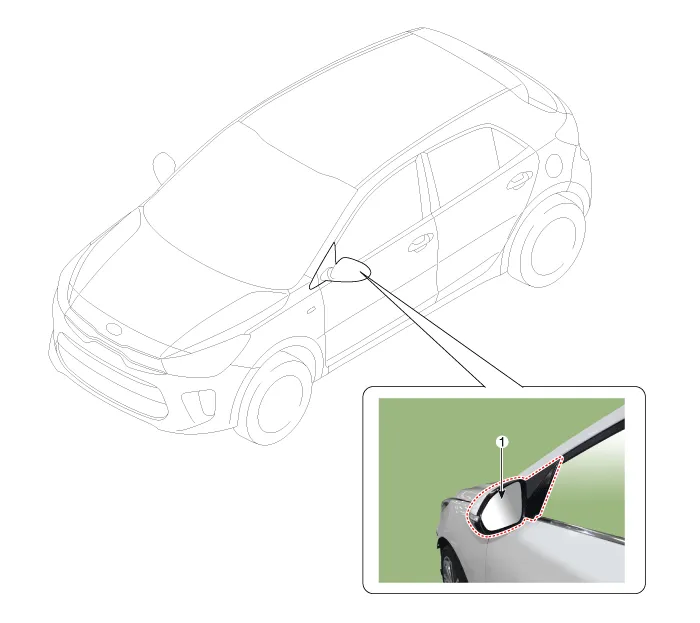

1. Outside rear view mirror

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Be careful not to bend or scratch the trim and panels.

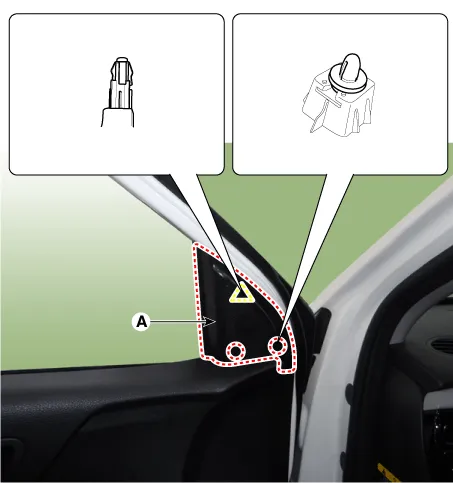

1.	Separate the front door quadrant inner cover (A) by using a or remover.

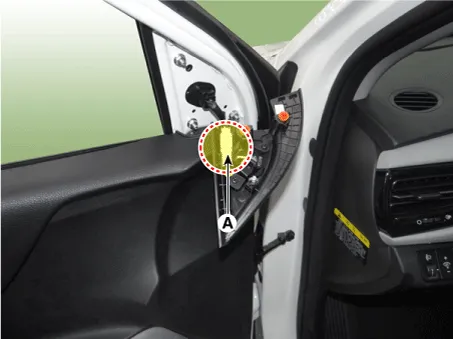

2.	Remove the front door tweeter speaker connector (A).

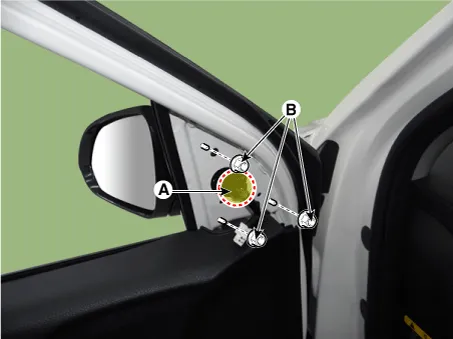

3.	Disconnect the outside rear view mirror connector (A) and loosen the nuts (B).

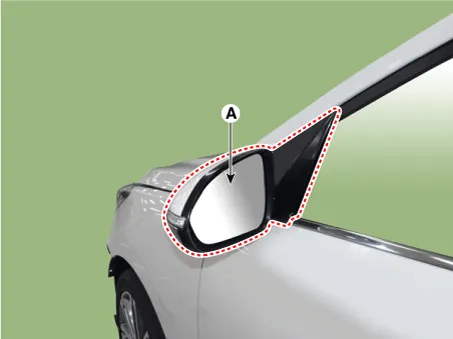

4.	Remove the outside rear view mirror (A).

Install in the reverse order of removal.

•	Make sure the connector is connected properly.

•	Replace any damaged clips.
