Kia Rio: Engine Oil and Filter / Manual Transaxle Oil

Kia Rio 2017-2023 YB Service Manual / Maintenance / Engine Oil and Filter / Manual Transaxle Oil

Repair procedures

Inspection

Manual Transaxle Oil Level Check

1.

Stop the engine and then raise the vehicle using the lift.

2.

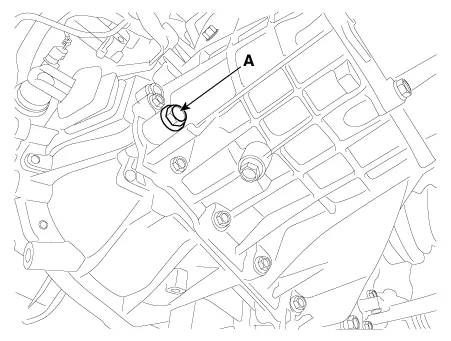

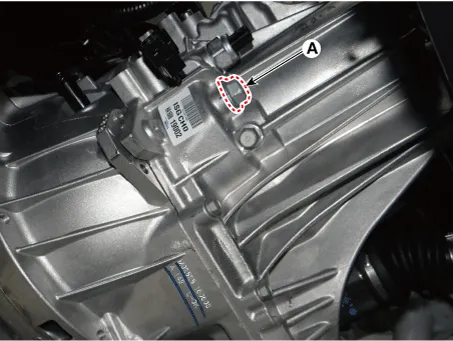

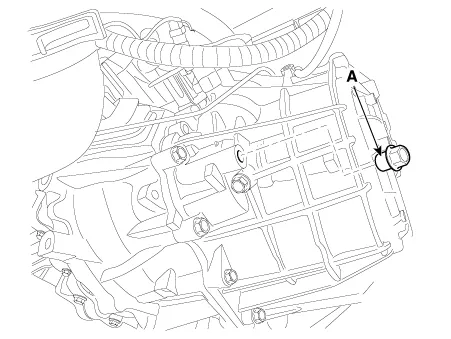

Remove the oil filler plug (A).

[Kappa 1.0 T-GDI, Kappa 1.4 MPI]

[Kappa 1.2 MPI]

[U-2 1.4 TCI]
3.

Check the condition of the oil and make sure that it is at the proper level (A).

4.

Install the oil filler plug (A).

Tightening torque :

58.9 - 78.5 N·m (6.0 - 8.0 kgf·m, 43.4 - 57.8 lb·ft)

[Kappa 1.0 T-GDI, Kappa 1.4 MPI]

[Kappa 1.2 MPI]

[U-2 1.4 TCI]



The existing oil filler plug gasket must be replaced with new one. (Do not reuse it.)
