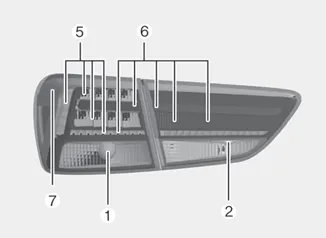

■ Rear combination lamp (4 Door) - Type A

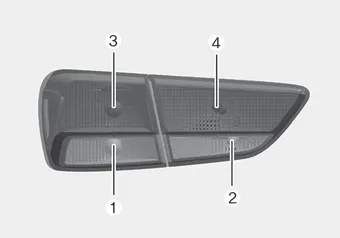

■ Rear combination lamp (4 Door) - Type B

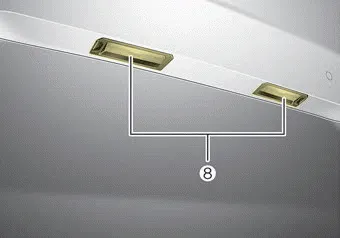

■ License plate lamp (4 Door)

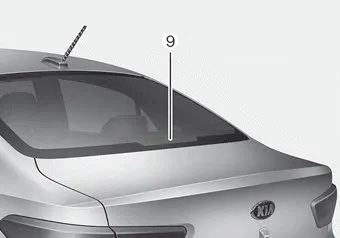

■ High mounted stop lamp (4 Door)

(1) Rear turn signal lamp (Bulb type)
(2) Back up lamp (Bulb type)
(3) Stop and tail lamp/Side marker (Bulb type)
(4) Tail lamp (Bulb type)
(5) Stop lamp (LED type)
(6) Tail lamp (LED type)
(7) Side marker (LED type)
(8) License plate lamp
(9) High mounted stop lamp

    ■ Rear combination lamp (5 Door) - Type A ■ Rear combination lamp (5 Door) - Type B ■ License plate lamp (5 Door) ■ High mounted stop lamp (5 Door) (1) Rear turn signal lamp (Bulb type) (2) Back up lamp (Bulb type) (3) Stop and tail lamp (Bulb type) (4) Tail lamp (Bulb type) (5) Side marker (Bulb type) (6) Stop and tail lamp (LED type) (7) Side marker (LED type) (8) License plate lamp (9) High mounted stop lamp

    ■ Type A ■ Type B (1) Side repeater lamp (LED type) (2) Side repeater lamp (bulb type)
