Kia Rio: Ignition System / Ignition Coil

Kia Rio 2017-2023 YB Service Manual / Engine Electrical System / Ignition System / Ignition Coil

Specifications

Specification

Item	Specification
Rated Voltage (V)	12
Operation Voltage (V)	5 - 16

Item	Specification
Engine Speed (RPM)	1000	2000	3000	4000	5000	6000
Dwell Time (ms)	3.82	2.61	2.27	1.93	1.79	1.6
Secondary Coil Voltage (kV)	32 ↑	32 ↑	31 ↑	30 ↑	29 ↑	27 ↑

Description and operation

Description

An ignition coil is an induction coil in an engine's ignition system which transforms the battery's low voltage to the high voltage needed to create an electric spark in the spark plugs to ignite the fuel. Coils have an internal resistor while others rely on a resistor wire or an external resistor to limit the current flowing into the coil from the battery 12 V supply.

Schematic diagrams

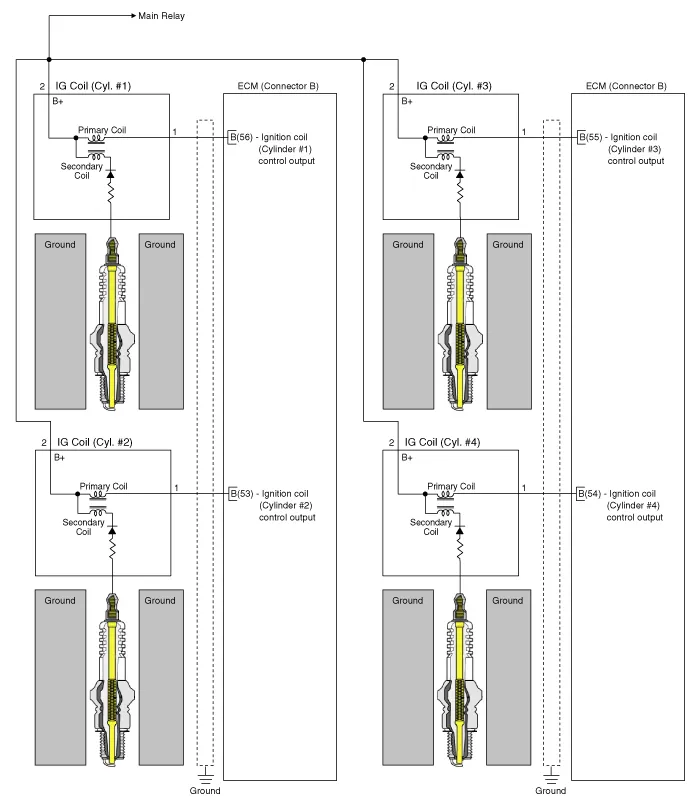

Circuit Diagram

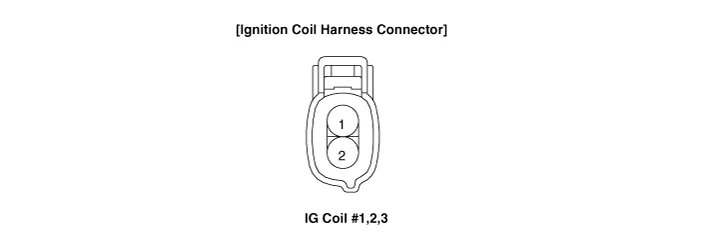

Connector View

Repair procedures

Removal

1.	Disconnect the battery nagative terminal.

2.	Remove the engine cover.

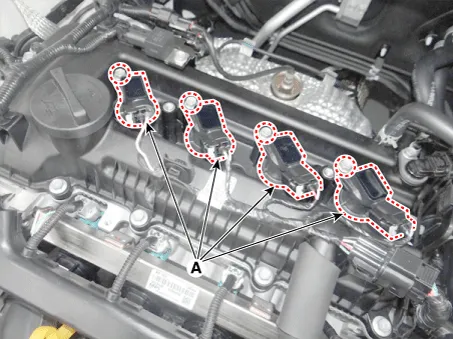

Remove the ignition coil (A) after loosening the mounting bolts.

Ignition coil mounting bolt:

9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 Ib·ft)

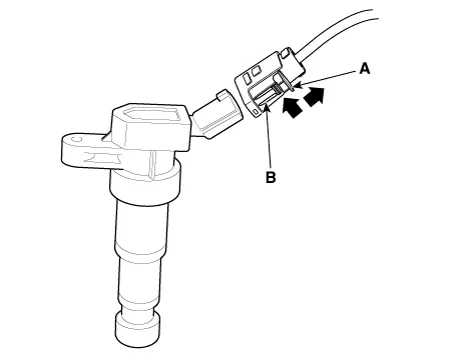

•	When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

Installation

1.	Install in the reverse order of removal.

Inspection

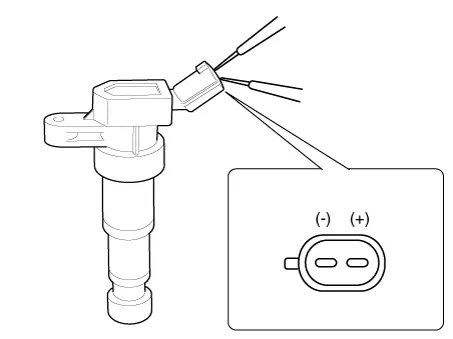

Measure the primary coil resistance between terminal 1 and 2.

Standard value: 0.74Ω ± 10% [20°C (68°F)]
