Kia Rio: Lighting / High beam operation

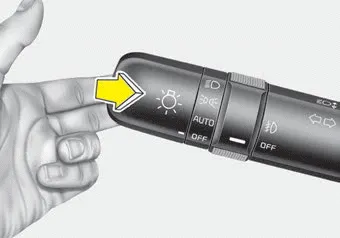

■ Type A

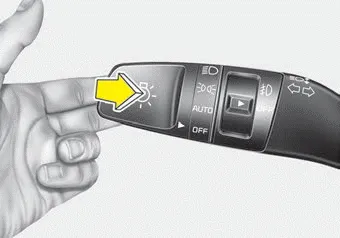

■ Type B
To turn on the high beam headlights, push the lever away from you. Pull it back for normal (low beam) position. The high beam indicator light will illuminate when the headlight high beams are switched on.
To prevent the battery from being discharged, do not leave the lights on for a prolonged time while the engine is not running.
WARNING - High beams
Do not use high beam when there are other vehicles. Using high beam could obstruct the other driver's vision.

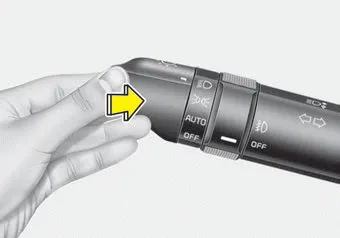

■ Type A

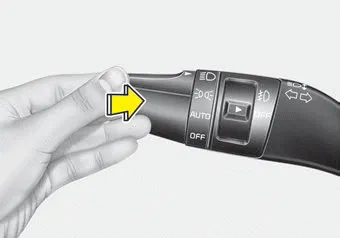

■ Type B
To flash the headlights, pull the lever towards you. It will return to the normal (low-beam) position when released. The headlight switch does not need to be on to use this flashing feature.
■ Type A ■ Type B When the light switch is in the AUTO light position, the taillights and headlights will turn ON or OFF automatically depending on the amount of light outside the vehicle.
■ Type A ■ Type B The ignition switch must be on for the turn signals to function. To turn on the turn signals, move the lever up or down (A).
