Kia Rio: Body Side Molding / Front Wheel Guard

Repair procedures

Replacement


Put on gloves to protect your hands.



Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

Remove the front tire.

2.

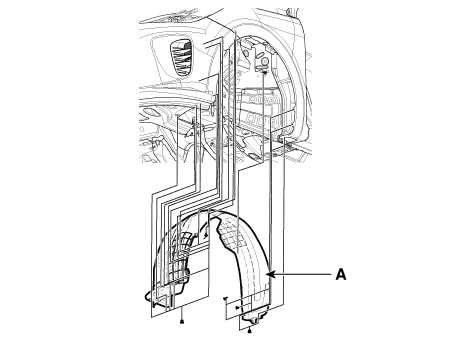

Remove the front wheel guard (A), after loosening the mounting clips and nuts.

3.

Install in the reverse order of removal.



Replace any damaged clips.
