Kia Rio: Interior features / Covering shelf (for 5 Door)
Use the cover to hide items stored in the cargo area.

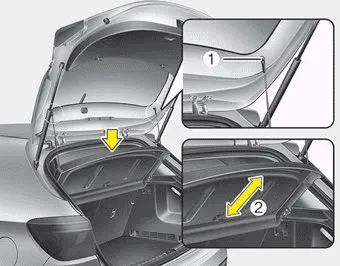

The covering shelf will be lifted when the liftgate is opened. Disconnect the strap (1) from holder if you want to return the cover to original position.To remove the covering shelf completely, lift the cover to a 43-degree angle and pull it out to the full (2). For installation of the cover, reverse the removal procedure.
When you return the covering shelf to its original position, hold the cover and lower it.
CAUTION
- Do not operate the vehicle with the cover removed. It may damage the cover.
- Since the covering shelf may be damaged or malformed, do not apply excessive force to the cover.
WARNING
Do not place objects on the covering shelf while driving. Such objects may be thrown about inside the vehicle and possibly injure vehicle occupants during an accident or when braking.
Never allow anyone to ride in the luggage compartment. It is designed for luggage only.
Maintain the balance of the vehicle and locate the weight as far forward as possible.
CAUTION Do not hang a bag weighing more than 3 kg (7 lbs.). It may cause damage to the shopping bag holder. Do not hang a bag with frail objects when you drive on a rough road as the objects may be damaged.
Be sure the exhaust system does not leak. The exhaust system should be checked whenever the vehicle is raised to change the oil or for any other purpose.
