Repair procedures

Removal
1.

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

2.

Remove the fuel tank assembly.

(Refer to Fuel System - "Fuel Tank")

3.

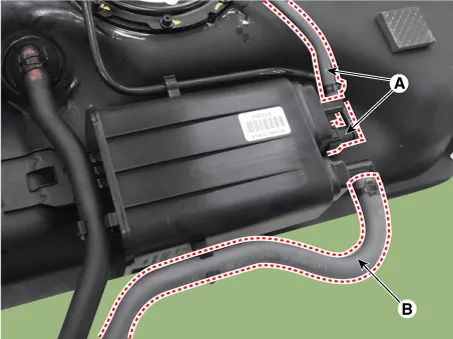

Disconnect the vapor hose and quick-connector (A) and ventilation hose (B).
4.

Remove the mounting bolt (A) and then remove the canister.
Inspection
1.

Check for the following items visually.

–

Cracks or leakage of the canister
–

Loose connection, distortion, or damage of the vapor hose/ tube

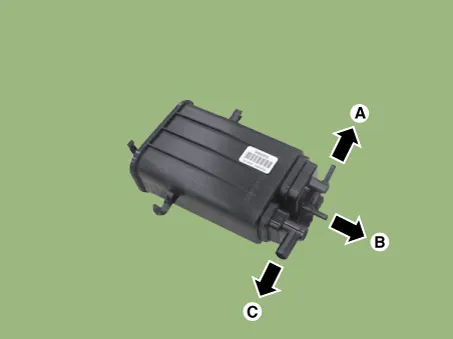

A: Canister ↔ Fuel Tank

B: Canister ↔ Intake Manifold

C: Canister ↔ Atmosphere

Installation
1.

Install in the reverse order of removal.
