| Specifications |
|
Items |
Specifications |
|
|
Rated voltage |
5V |
|
|
Load |
Max. 1mA (Relay load) |
|
|
Illuminations (LUX) |
50 |
1.22 ± 0.27 V |
|
150 |
3.23 ± 0.71 V |
|

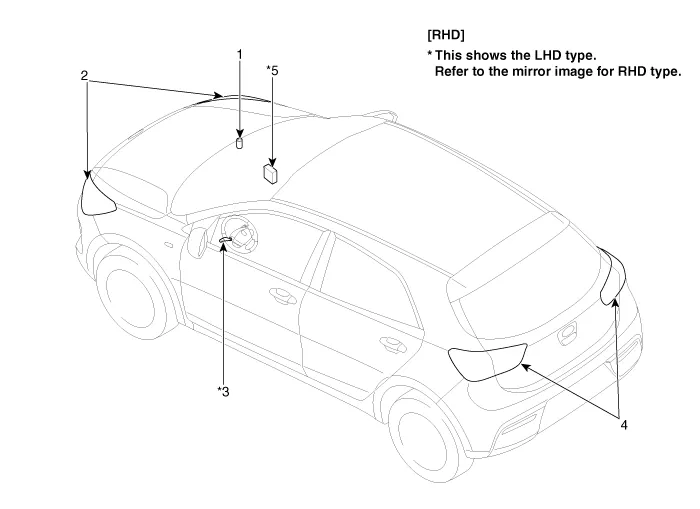

| Component Location |

| 1. Auto light sensor 2. Headlamps 3. Lighting switch (Auto) |
4. Tail lamps 5. BCM (Body Control Module) |

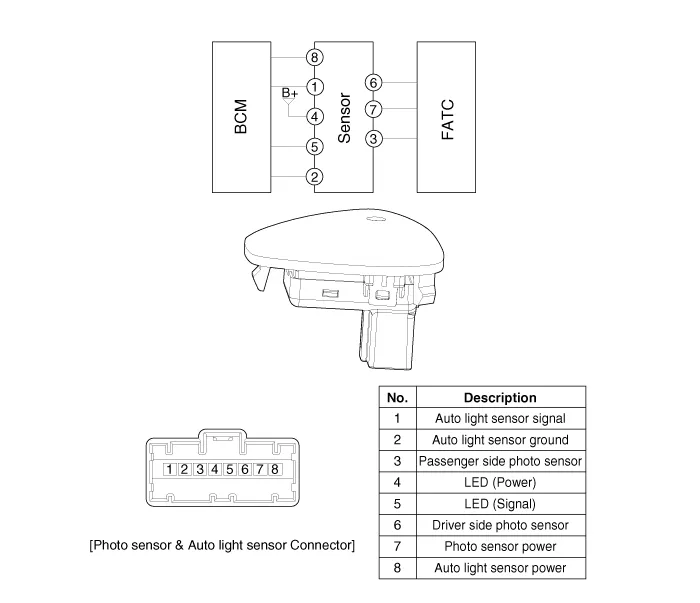

| Circuit Diagram |

| Description |
It's a system that uses illumination sensor to automatically turn ON the tail lamp and head lamp based on the change in surrounding environment's illumination condition. It activates when the vehicle enters/exits tunnel, or when the illumination condition in surrounding environment changes due to rain, snow, or fog. Precautions corresponding to the use of this system are as follows.
| 1. |
Do not add another device on top of this device. |
| 2. |
Be sure to switch to manual during poor visibility climate, such as fog, heavy rain, or cloudy weather. |
| 3. |
Illumination intensity in an actual vehicle is not always constant, and lamp ON/OFF time may very depending on the climate, season, and surrounding environment. |
| 4. |
Use this system only during sunrise and sunset period, and manually control lamp ON/OFF for general conditions. |
| 5. |
Error may occur if light block coating that may change interior illumination is applied. |
