Kia Rio: Manual heating and air conditioning / Air conditioning, OFF mode
Air conditioning

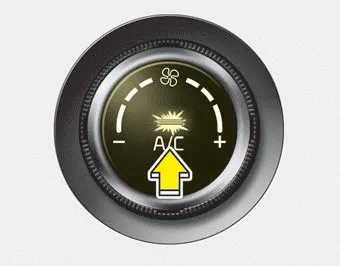

Press the A/C button to turn the air conditioning system on (indicator light will illuminate).
Press the button again to turn the air conditioning system off.
OFF mode

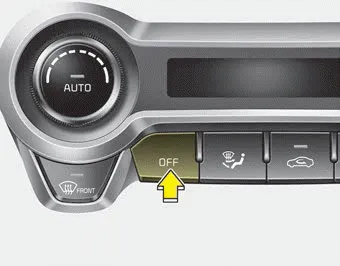

Press the OFF button to turn off the air climate control system. However you can still operate the mode and air intake buttons as long as the ignition switch is in the ON position.
The fan speed can be set to the desired speed by operating the fan speed control knob. The higher the fan speed is, the more air is delivered. Pressing the OFF button turns off the fan.
Ventilation 1. Set the mode to the position. 2. Set the air intake control to the outside (fresh) air position. 3. Set the temperature control to the desired position.
