Kia Rio: Features of your vehicle / Trunk (for 4 door)
Opening the trunk

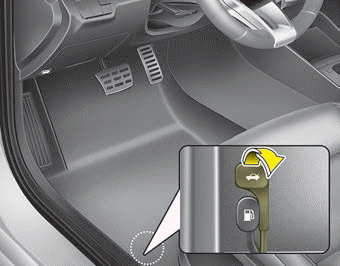

To open the trunk from inside the vehicle, pull the trunk lid release lever.
Once the trunk is opened and then closed, the trunk locks automatically.
✽ NOTICE
In cold and wet climates, trunk lock and trunk mechanisms may not work properly due to freezing conditions.
WARNING
The trunk swings upward. Make sure no objects or people are near the rear of the vehicle when opening the trunk.
CAUTION
Make certain that you close the trunk before driving your vehicle. Possible damage may occur to attached hardware if the trunk is not closed prior to driving.
The child safety lock is provided to help prevent children from accidentally opening the rear doors from inside the vehicle. The rear door safety locks should be used whenever children are in the vehicle.
To close, lower the trunk lid, then press down on it until it locks. To be sure the trunk lid is securely fastened, always check by trying to pull it up again.
