Kia Rio: Hydraulic System / Oil Pump

Kia Rio 2017-2021 YB Service Manual / Automatic Transaxle System / Hydraulic System / Oil Pump

Description and operation
Discription

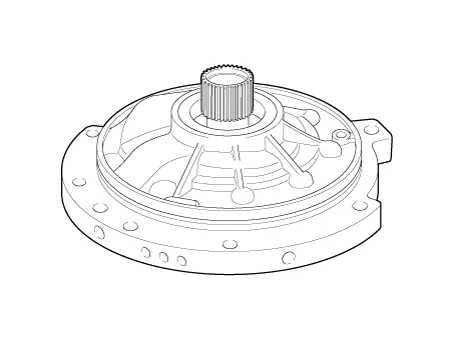

Rotation of the pump builds the hydraulic pressure needed for the lubrication of the various parts of the transaxle and operation of the clutch and brakes. The oil also circulates through the torque converter and the cooler.
