CAUTION

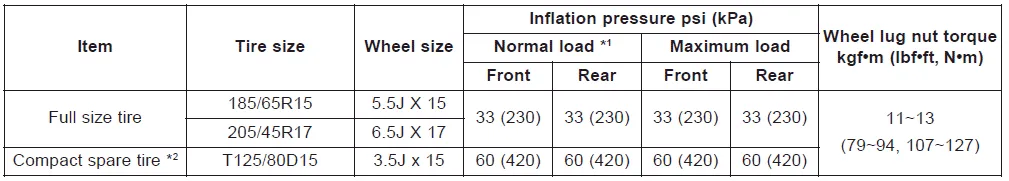

When replacing tires, use the same size originally supplied with the vehicle. Using tires of a different size may damage the related parts or cause them to operate improperly.
✽ NOTICE
Engine Dimensions Bulb wattage
M/T : Manual transmission IVT : Intelligent variable transmission
Repair procedures Removal 1. Disconnect the negative (-) battery terminal. 2. Open the tailgate. 3. Remove the high mounted stop lamp (A) after loosening the mounting nuts.
Components and components location Component Location 1. Cap 2. Nut 3. Wiper arm & blade 4. Cowl top cover 5. Bolt 6. Wiper motor & linkage assembly 7. Wiper motor connector Repair procedures Removal 1.
