| Components |

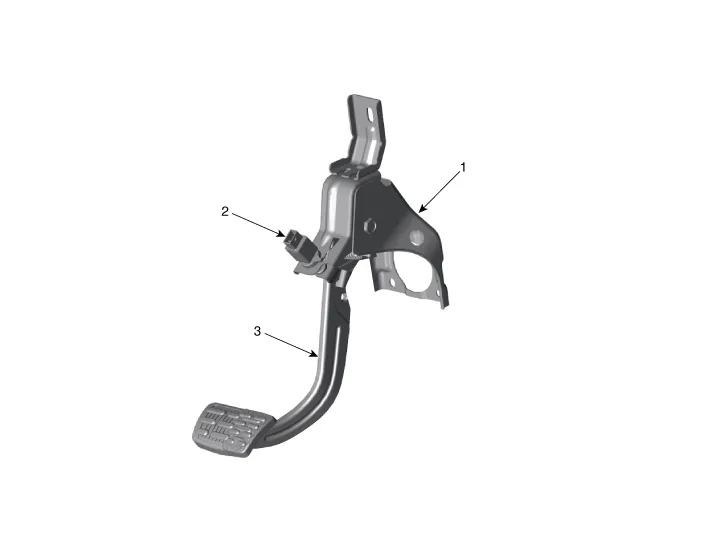

| 1. Brake pedal member assembly
2. Stop lamp switch |
3. Brake pedal arm |
| Schematic Diagram |

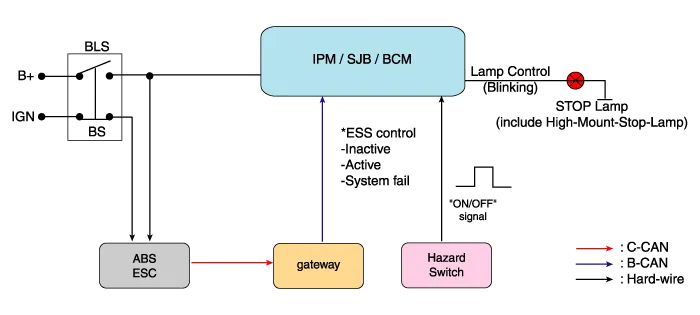

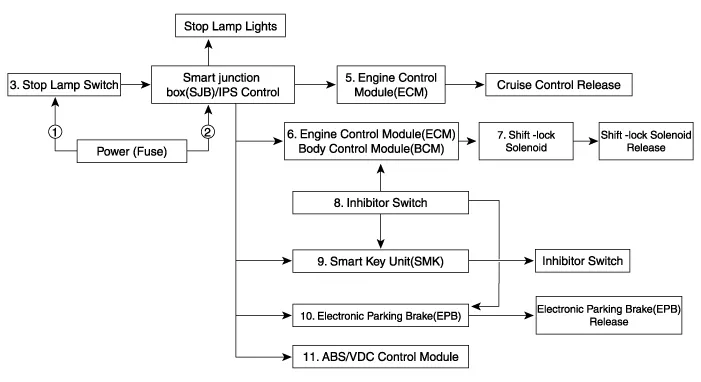

| System circuit diagram |

| Terminal function |

|
Terminal |
Description |
|
1 |
IGN1 |
|
2 |
Engine Control Module (ECM) |
|
3 |
B+ |
|
4 |
Stop Lamp |
| Troubleshooting |
| 1. |
Part diagnosis
|
| 2. |

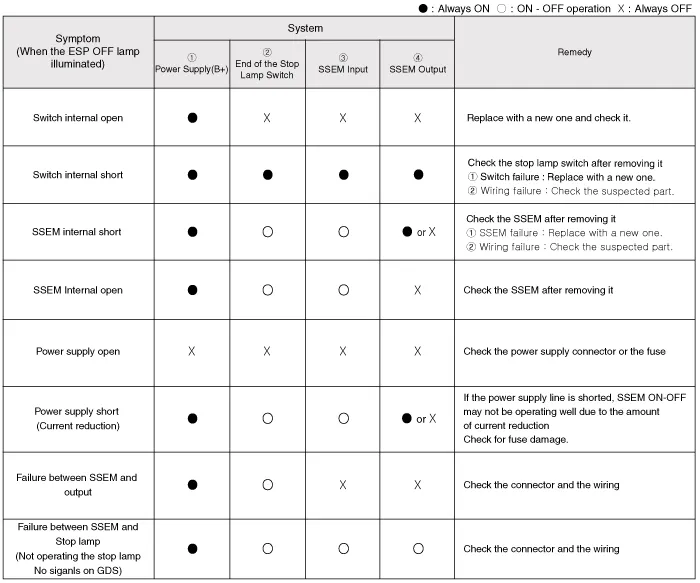

Symptom diagnosis
|
| 3. |

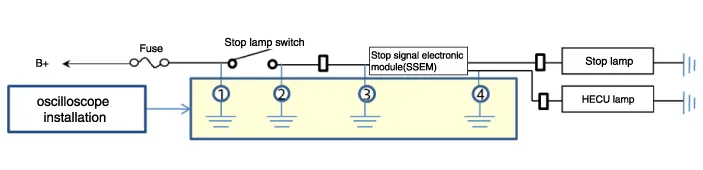

Stop lamp switch system diagnosis
SSEM : Stop Signal Electronic Module |
| 4. |
Refer to DTC guide when the related DTC codes are displayed. |
| Adjustment |
| 1. |

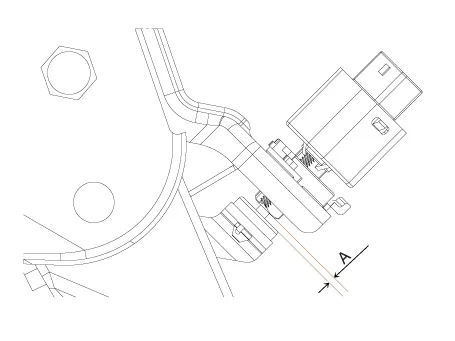

Confirm the gap between stop lamp switch and bracket.
|
| 2. |
If the gap between stop lamp switch and bracket is not between 1.0 - 2.0 mm (0.04 - 0.08 in), check the mounting clip and other parts around the stop lamp. |
| 3. |
If everything is normal, reinstall the stop lamp switch and check the clearance again. |
| Inspection |
| 1. |

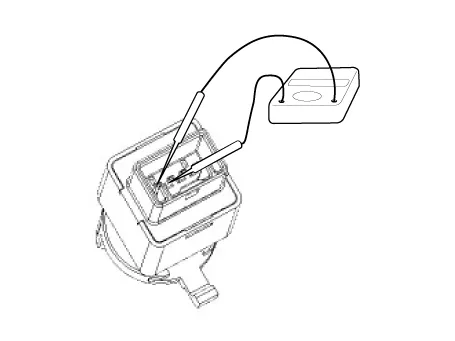

Check the stop lamp switch.
|
| Replacement |
| 1. |
Switch "OFF" ignition and disconnect the negative (-) battery terminal. |
| 2. |
Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") |
| 3. |

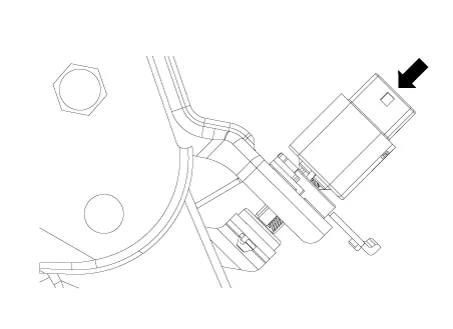

Disconnect the brake lamp switch connector (A).
|
| 4. |

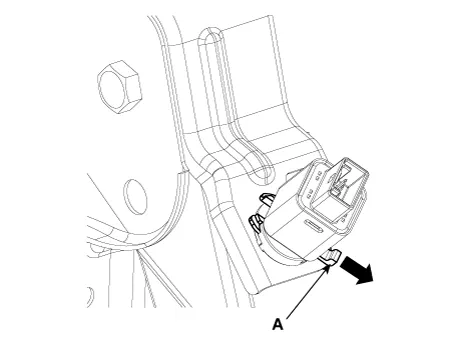

Pull the locking plate (A) as indicated by the arrow.
|
| 5. |
Turn brake switch 45° counterclockwise and remove it.
|
| 6. |
Fix the brake pedal arm and insert fully the brake switch so that the contact part is invisible.
|
| 7. |
After inserting, turn the brake switch 45° clockwise, and then assemble locking plate by pushing.
|
| 8. |
Connect the brake lamp switch connector (A).
|
| 9. |
Install the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") |
