Kia Rio: Body Side Molding / Roof Side Molding

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Body Side Molding / Roof Side Molding

Repair procedures

Replacement


Put on gloves to protect your hands.


•

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•

Take care not to bend or scratch the trim and panels.

1.

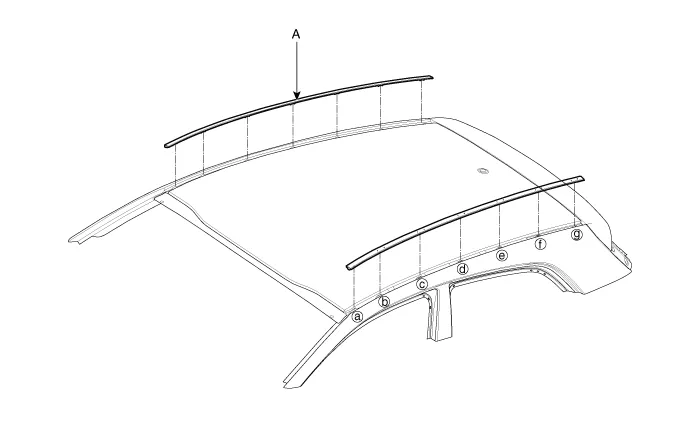

Using a remover, remove the roof side molding (A).



Always replace the roof side molding with a new one.

2.

Install in the reverse order of removal.



First assemble the clip ⓐ and then assemble the other clips from the ⓐ to ⓖ direction in sequence order.
