Kia Rio: Rear Door / Rear Door Trim

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Trim

Components and components location

Component Location

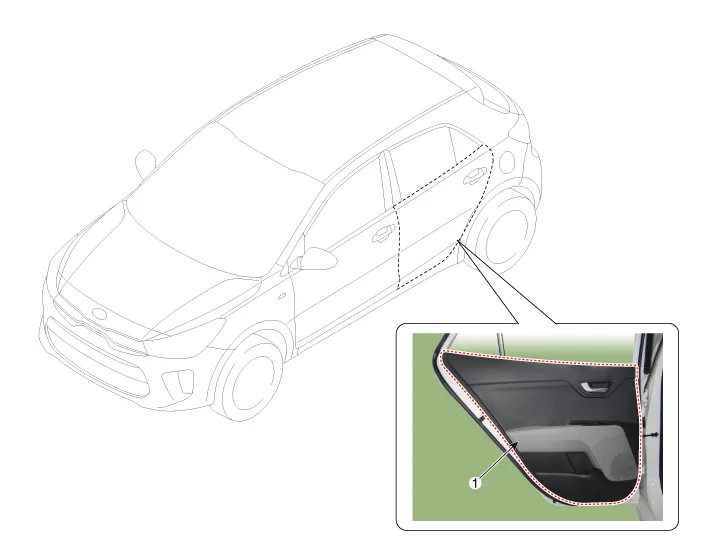

1. Rear door trim

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Be careful not to bend or scratch the trim and panels.

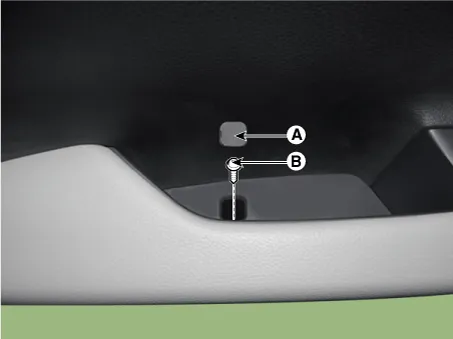

1.	Remove the cap (A) and then loosen the screw (B).

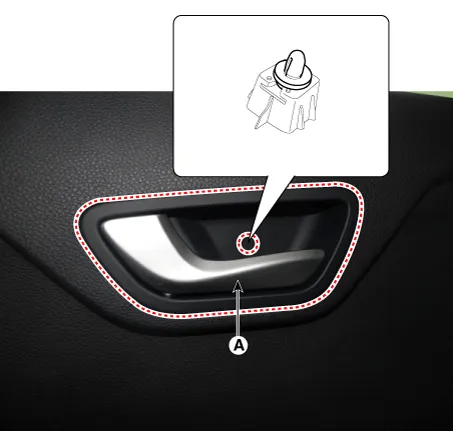

2.	Remove the rear door inside handle cap (A).

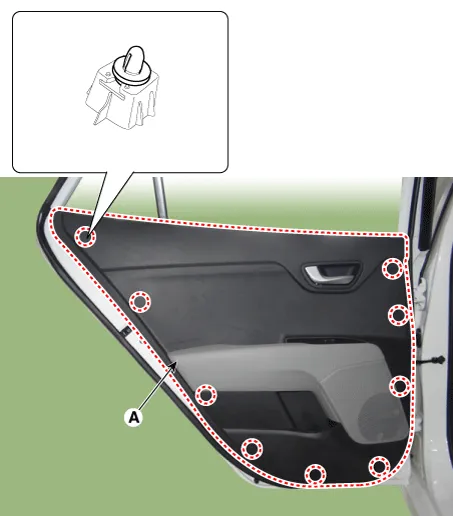

3.	Remove the rear door trim (A).

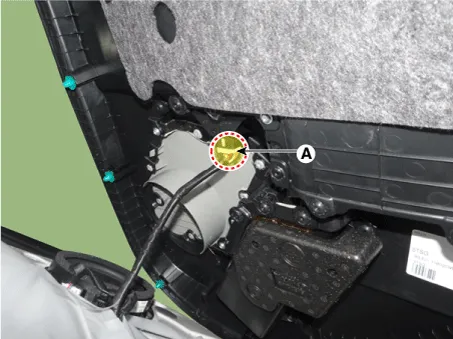

4.	Disconnect the power window switch connector (A).

Install in the reverse order of removal.

•	Check that glass operation is normal.

•	Check the damage glass channel, and replace if necessary.

•	Adjust glass if necessary.
