Kia Rio: SRSCM / PAB ON/OFF Switch

Kia Rio 2017-2023 YB Service Manual / Restraint / SRSCM / PAB ON/OFF Switch

Description and operation

Description

Driver can control the passenger airbag operating Condition (Enable or Disable) by using this PAB ON/OFF switch.

Passenger Airbag (PAB) ON/OFF Switch is installed in the crash pad side cover.

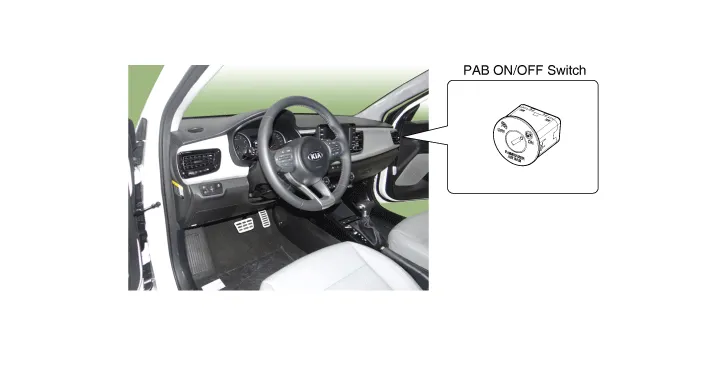

Components and components location

Components

Repair procedures

Removal

1.	Remove the ignition key from the vehicle.

2.	Disconnect the battery negative cable and wait for at least three minutes before beginning to work.

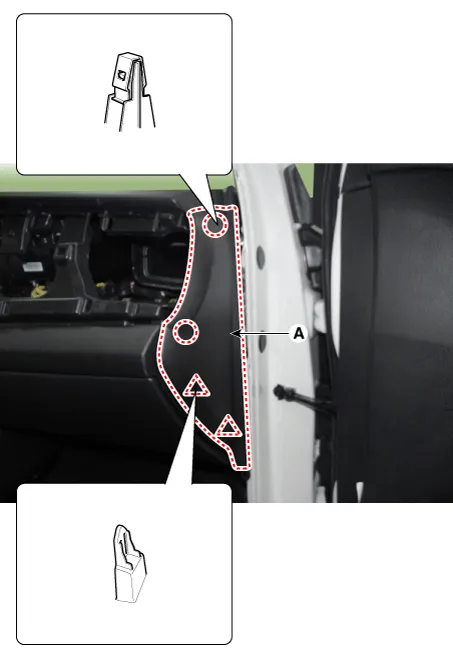

3.	Remove the crash pad side cover (A).

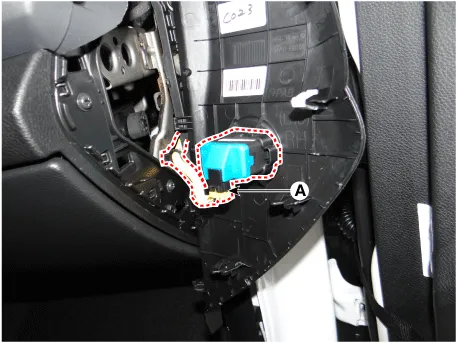

4.	Disconnect the PAB ON/OFF switch connector (A).

5.	Remove the PAB ON/OFF switch.

Installation

1.	Remove th e ignition key from the vehicle.

2.	Disconnect the battery negative cable and wait for at least three minutes before beginning to work.

3.	Install the PAB ON/OFF switch to the crash pad side cover.

4.	Connect the PAB ON/OFF switch connector.

5.	Install the crash pad side cover. (Refer to Body - "Crash pad side cover")

After installing the SRSCM, confirm proper system operation:

–	Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
