Kia Rio: Instrument cluster / Instrument Cluster Control
Adjusting Instrument Cluster Illumination

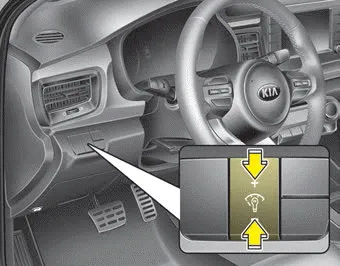

The instrument panel illumination intensity can be adjusted by pressing the control switch with the headlight switch in any position when the ignition switch is in the ON position.
The illumination intensity is shown on the instrument cluster LCD window.

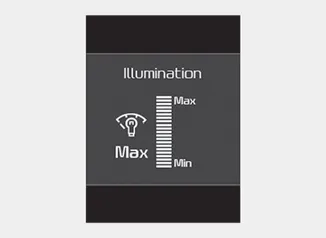

■ Type A

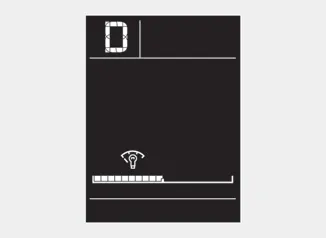

■ Type B
- If you hold the illumination control button (“+” or “-”), the brightness will be changed continuously.
- If the brightness reaches the maximum or minimum level, an alarm will sound.
■ Type A ■ Type B 1. Tachometer 2. Speedometer 3. Engine coolant temperature gauge 4. Fuel gauge 5.Warning and indicator lights 6. LCD display
The LCD window modes can be changed by using the control buttons on the steering wheel. [Type A] (1) TRIP : TRIP button for changing trip modes (2) RESET : RESET button for resetting items [Type B] (1) : MODE button for changing LCD modes (2) / : MOVE scroll switch to select items (3) OK : SET/RESET button for setting or resetting items ❈ For the LCD modes, refer to “LCD window” in this chapter.
