Kia Rio: Fuses / Fuse/relay panel description

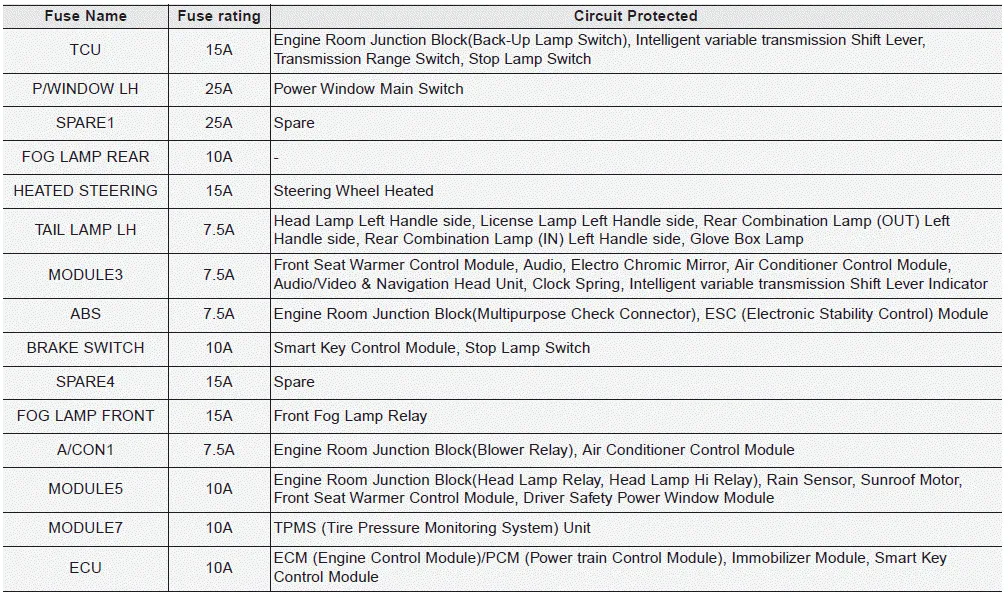

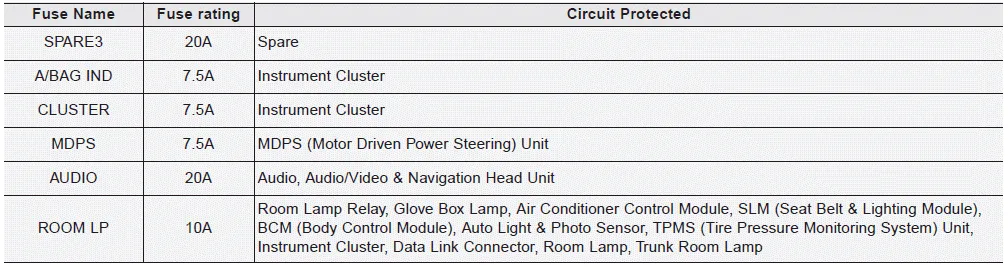

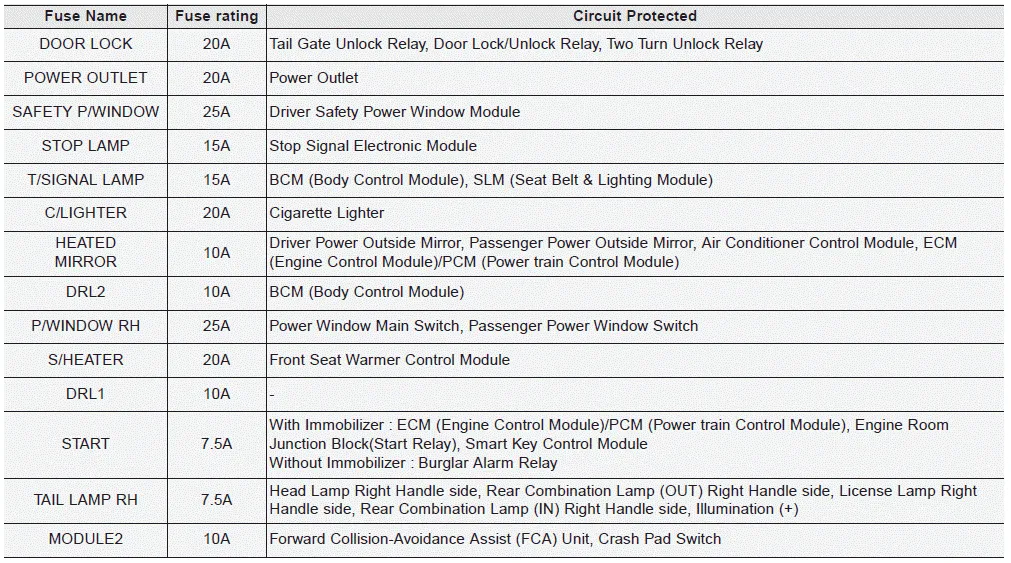

Driver’s side fuse panel

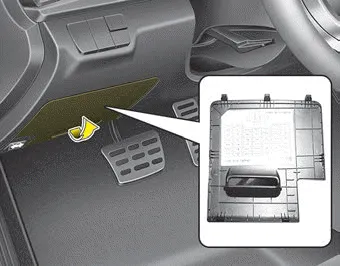

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
✽ NOTICE
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

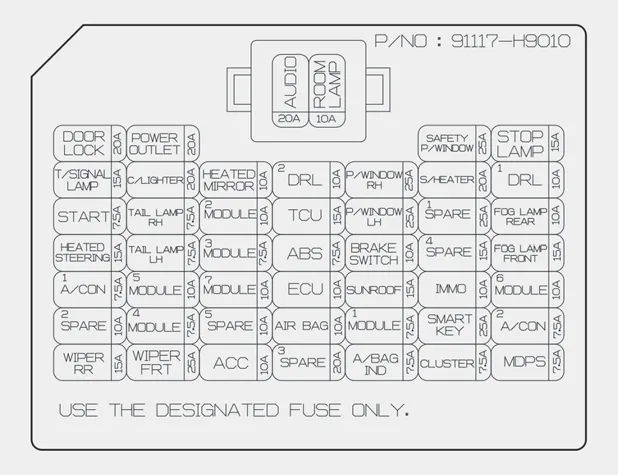

Instrument panel (Driver’s side fuse panel)

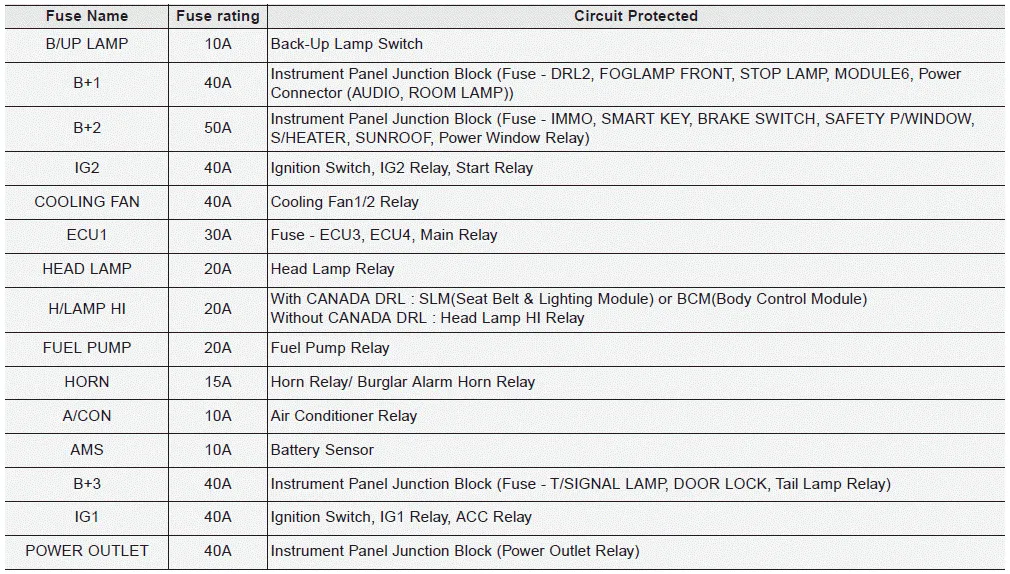

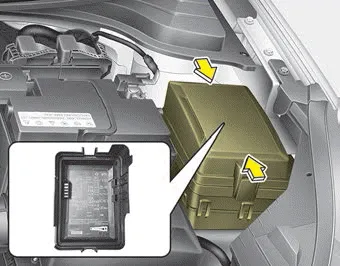

Engine compartment fuse panel

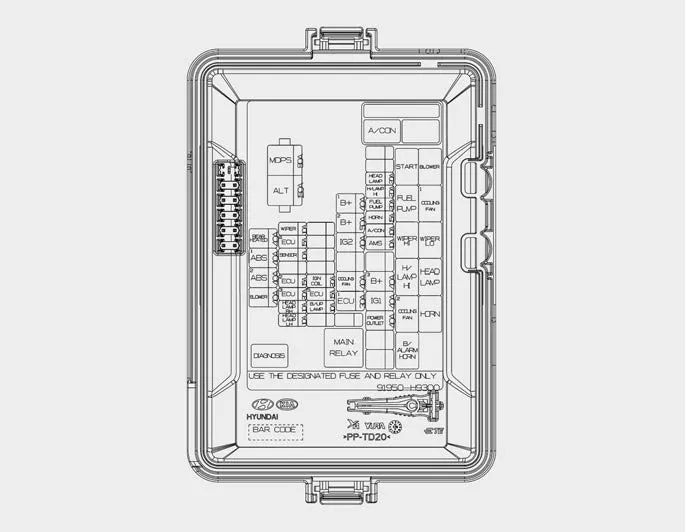

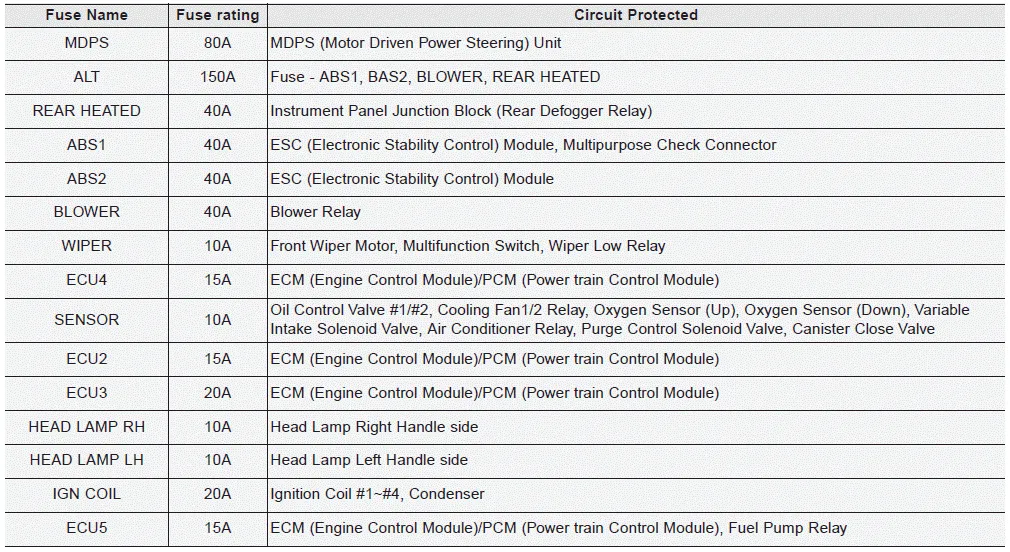

Engine room compartment fuse panel

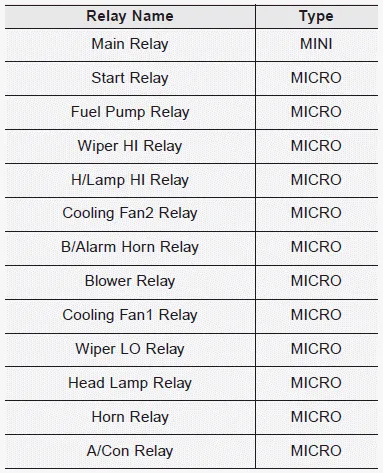

Relay
1. Turn the ignition switch and all other switches off. 2. Remove the fuse panel cover by pressing the tab and pulling the cover up. When the blade type fuse is disconnected, remove it by using the clip designed for changing fuses located in the engine compartment fuse box.
Bulb replacement precaution Please keep extra bulbs on hand with appropriate wattage ratings in case of emergencies. Refer to “Bulb Wattage” in chapter 9.
