Kia Rio: Timing System / Front Oil Seal
Repair procedures
| Replacement |
| 1. |
Remove the crankshaft damper pulley. (Refer to Drive Belt System - "Crankshaft Damper Pulley") |
| 2. |

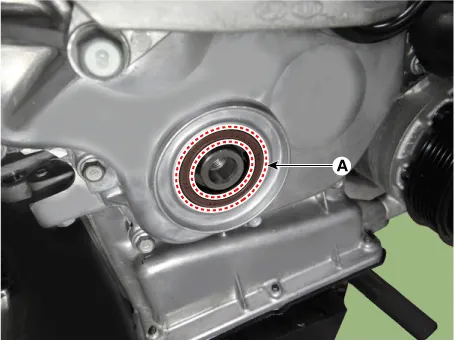

Remove the front oil seal (A).
|
| 3. |
Using the SST (09214-1R000, 09231-H1100) (A), install a new front oil seal (B), apply engine oil on the edge of new oil seal.
|
Repair procedures Removal Engine removal is not required for this procedure. • Use fender covers to avoid damaging painted surfaces.
