Kia Rio: Front Door / Front Door Outside Handle

Kia Rio 2017-2021 YB Service Manual / Body (Interior and Exterior) / Front Door / Front Door Outside Handle

Components and components location

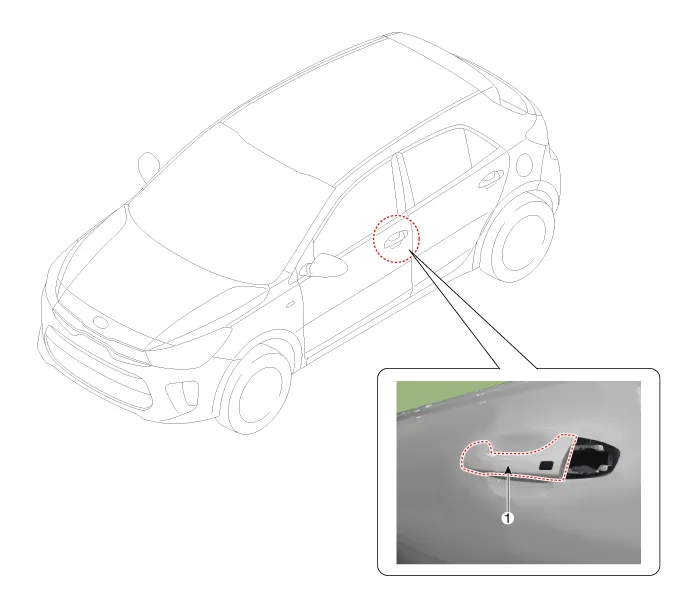

Component Location

1. Front door outside handle


Repair procedures
Replacement


Put on gloves to protect your hands.



Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

Remove the front door window glass.

(Refer to Front Door - "Front Door Window Glass")

2.

Disconnect the front door outside handle connector (A).

3.

Remove the front door lock cover (A).

4.

Remove the plug hole cap (B) and then loosen the bolt and remove the door lock assembly (A).

5.

Remove the front door outside handle (A) by sliding it rearward.

6.

Install in the reverse order of removal.



Make sure that the connector is connected properly.

Make sure that the door locks/unlocks and opens/closes properly.
