Kia Rio: Windshield defrosting and defogging / Automatic climate control system

Kia Rio 2017-2024 YB Owners Manual / Features of your vehicle / Windshield defrosting and defogging / Automatic climate control system

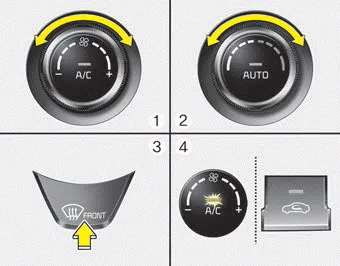

To defog inside windshield

1. Select desired fan speed. 2. Select desired temperature. 3. Press the defroster button (). 4. The outside (fresh) air position will be selected automatically.

If the outside (fresh) air position is not selected automatically, adjust the corresponding button manually.

If the position is selected, lower fan speed is adjusted to a higher fan speed.

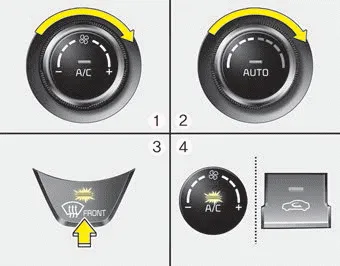

To defrost outside windshield

1. Set the fan speed to the highest position.

2. Set the temperature to the highest (HI) position.

3. Press the defroster button ().

4. The outside (fresh) air position will be selected automatically.

If the position is selected, lower fan speed is adjusted to a higher fan speed.
