Kia Rio: Light bulbs / Trunk lamp bulb replacement (for 4 door)

Kia Rio 2017-2020 YB Owners Manual / Maintenance / Light bulbs / Trunk lamp bulb replacement (for 4 door)

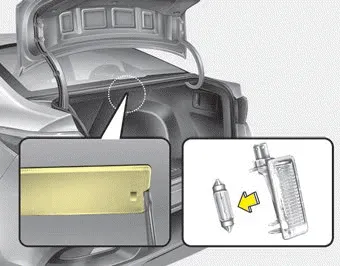

1. Using a flat-blade screwdriver, gently pry the lens cover from lamp housing.

2. Remove the bulb by pulling it straight out.

3. Install a new bulb in the socket.

4. Align the lens cover tabs with the lamp housing notches and snap the lens into place.

CAUTION

Be careful not to dirty or damage the lens, lens tab, and plastic housings.
