Kia Rio: Rear Seat / Rear Seat Assembly

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Assembly

Components and components location

Component Location

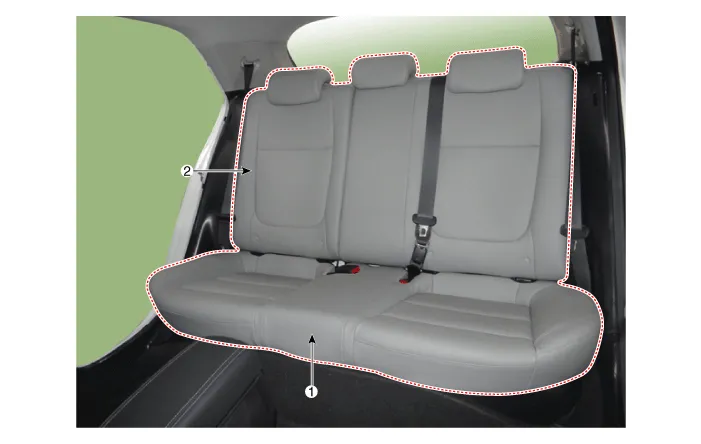

1. Rear seat cushion assembly

2. Rear seat back assembly

Repair procedures

Replacement

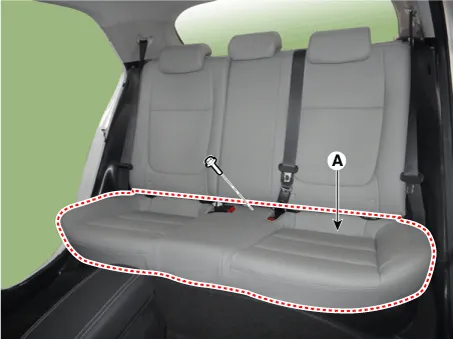

Remove the rear seat cushion assembly (A) after loosening the bolt.

Tightening torque :

21.6 - 31.4 N·m (2.2 - 3.2 kgf·m, 15.9 - 23.1 lb·ft)

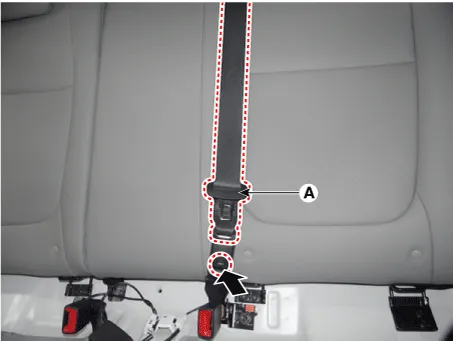

2.	Disconnect the rear center seat belt (A).

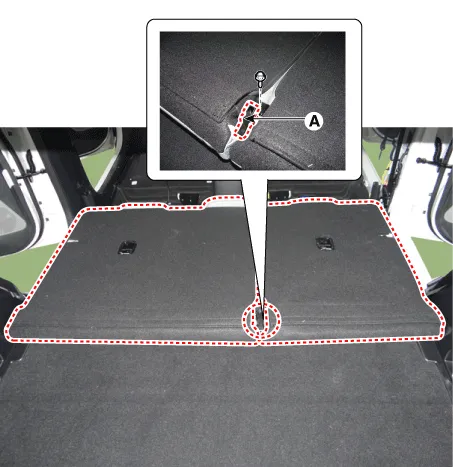

Open the rear seat center hinge (A) after loosening the mounting bolt.

Tightening torque :

21.6 - 31.4 N·m (2.2 - 3.2 kgf·m, 15.9 - 23.1 lb·ft)

4.	Remove the rear seat back assembly (A).

5.	Install in the reverse order of removal.
