Kia Rio: Safety features of your vehicle / Air bag - advanced supplemental restraint system

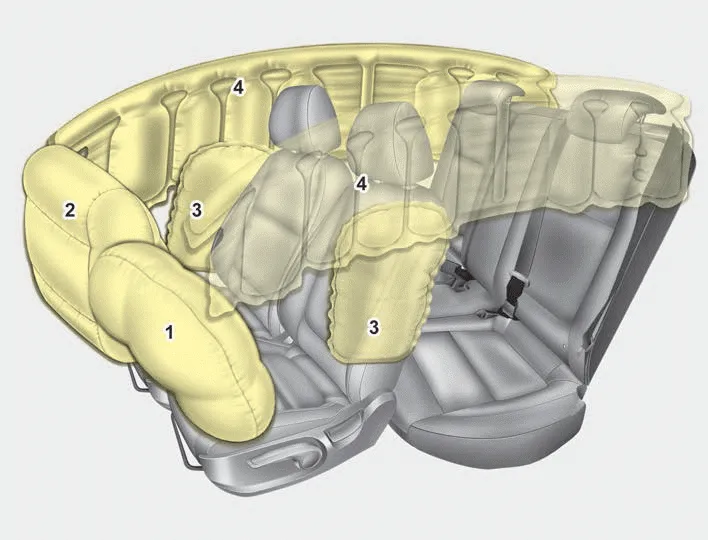

(1) Driver’s front air bag
(2) Passenger’s front air bag
(3) Side air bag
(4) Curtain air bag
Even in vehicles with air bags, you and your passengers must always wear the safety belts provided in order to minimize the risk and severity of injury in the event of a collision or rollover.
- How does the air bag system operate
- Air bag warning light
- SRS components and functions
- Occupant detection system
- Driver's and passenger's front air bag
- Side air bag
- Curtain air bag
- Why didn’t my air bag go off in a collision? (Inflation and noninflation conditions of the air bag)
- SRS Care
- Air bag warning label
Some child seat manufacturers make child restraint seats that are labeled as LATCH or LATCH-compatible child restraint seats. LATCH stands for "Lower Anchors and Tethers for Children".
Air bags are activated (able to inflate if necessary) only when the ignition switch is turned to the ON or START the appropriate position. Air bags inflate instantly in the event of serious frontal or side collision (if equipped with side air bag or curtain air bag) in order to help protect the occupants from serious physical injury.
