Kia Rio: Chassis / Steering Gear Rack, Linkage and Boots

Kia Rio 2017-2023 YB Service Manual / Maintenance / Chassis / Steering Gear Rack, Linkage and Boots

Repair procedures

Inspection
1.

Check the steering wheel free road.

(1)

Turn the steering wheel so that the front wheels can face straight ahead.

(2)

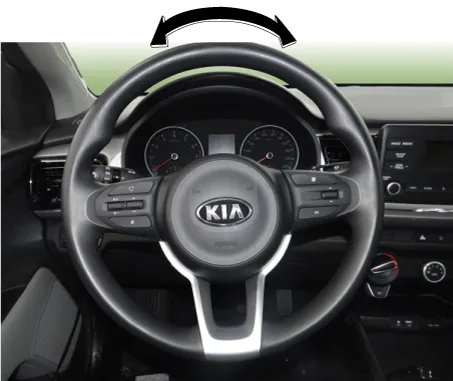

Measure the distance the steering wheel can be turned without moving the front wheels.

Standard value: 30mm (1.18in.) or less

(3)

If the play exceeds standard value, inspect the steering column, shaft, and linkages.

2.

Check the steering linkage for looseness or damage.

(1)

Check that the dust parking and cap are not damaged.

(2)

Check that the Bellows bands are not loose.

(3)

Check that the steering gear box is not damaged.

(4)

Check that the column and shaft are properly connected to the steering gear box.

    Repair procedures Inspection Check whether the stroke is within specification when the parking brake lever is depressed with 44 lbf, 196 N(20 kgf) of force.

    Repair procedures Inspection Visually check, must be free from injurious flaw and crack.
