Kia Rio: Features of your vehicle / Mirrors
Inside rearview mirror
Adjust the rearview mirror so that the center view through the rear window is seen. Make this adjustment before you start driving.
Do not place objects in the rear seat which would interfere with your vision through the rear window.
WARNING - Mirror adjustment
Do not adjust the rearview mirror while the vehicle is moving. This could result in loss of control.
WARNING
Do not modify the inside mirror in any manner including installing a wider mirror. Doing so could result in injury during an accident or deployment of the air bag.

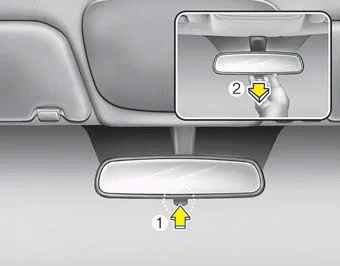

Day/night rearview mirror
Make this adjustment before you start driving and while the day/night lever is in the day position (1).
Pull the day/night lever toward you (2) to reduce the glare from the headlights of the vehicles behind you during night driving.
Remember that you lose some rearview clarity in the night position.
❈ (1) : Day, (2) : Night
Horn To sound the horn, press the horn symbols on your steering wheel. Check the horn regularly to be sure it operates properly. ✽ NOTICE To sound the horn, press the area indicated by the horn symbol on your steering wheel (see illustration).
Be sure to adjust mirror angles before driving. Your vehicle is equipped with both left-hand and right-hand outside rearview mirrors. The mirrors can be adjusted remotely with the remote switch (if equipped).
