Kia Rio: Light bulbs / Tail lamp (Bulb type) bulb replacement (for 4 door)
1. Open the trunk lid.
2. Loosen the retaining screw of the trunk lid cover and then remove the cover.

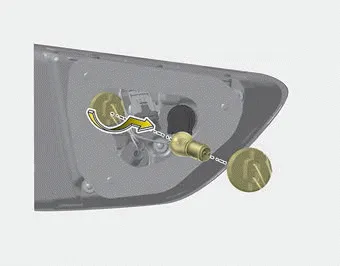

3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.
4. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.
5. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.
6. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.
7. Install the trunk lid cover.
Side marker (rear) (LED type) bulb replacement (Rear combination lamp Type B) (for 4 door) If the Side marker (LED) (1) does not operate, have the vehicle checked by an authorized Kia dealer.
Stop and tail lamp (LED type) bulb replacement (for 4 door) If the stop and tail lamp (LED) (1,2) does not operate, have the vehicle checked by an authorized Kia dealer.
