Kia Rio: Light bulbs / Side marker (rear) (LED type) bulb replacement (Rear combination lamp Type B) (for 5 door)

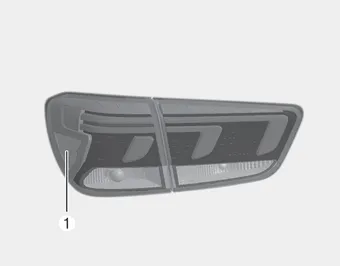

If the Side marker (LED) (1) does not operate, have the vehicle checked by an authorized Kia dealer.
The LED lamps cannot be replaced as a single component because it is part of an integrated unit. The LED lamps have to be replaced with the unit.
A skilled technician should check or repair the Side marker (LED), for it may damage related parts of the vehicle.
1. Open the liftgate. 2. Remove the service cover. 3. Loosen the light assembly retaining screws with a cross-tip screwdriver. 4. Remove the rear combination lamp assembly from the body of the vehicle.
High mounted stop lamp bulb replacement (for 5 door) If the high mounted stop lamp (1) does not operate, have the vehicle checked by an authorized Kia dealer.
