Side marker (front) (LED type) bulb replacement (Headlamp Type B)

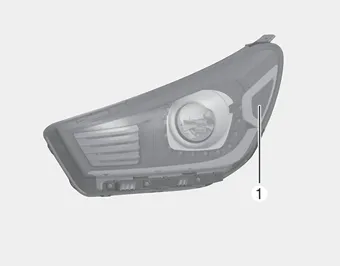

If the Side marker (LED) (1) does not operate, have the vehicle checked by an authorized Kia dealer.
The LED lamps cannot be replaced as a single component because it is part of an integrated unit. The LED lamps have to be replaced with the unit.
A skilled technician should check or repair the Side marker (LED), for it may damage related parts of the vehicle.
Front fog lamp bulb replacement
If the front fog lamp (1) does not operate, have the vehicle checked by an authorized Kia dealer.
A skilled technician should check or repair the front fog lamp, for it may damage related parts of the vehicle.
Headlamp (Low/High beam) (LED type) bulb replacement (Headlamp Type B) If the headlamp (Low/High beam) (1) does not operate, have the vehicle checked by an authorized Kia dealer.
Position lamp + DRL (LED type) bulb replacement If the position lamp + DRL (LED) (1) does not operate, have the vehicle checked by an authorized Kia dealer.
