Kia Rio: Light bulbs / Position lamp + DRL (LED type) bulb replacement, Position lamp + DRL (LED type) bulb replacement

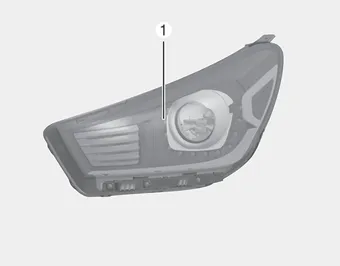

Position lamp + DRL (LED type) bulb replacement
If the position lamp + DRL (LED) (1) does not operate, have the vehicle checked by an authorized Kia dealer.
The LED lamps cannot be replaced as a single component because it is part of an integrated unit. The LED lamps have to be replaced with the unit.
A skilled technician should check or repair the position lamp + DRL (LED), for it may damage related parts of the vehicle.
Daytime running lamp (Bulb type) bulb replacement

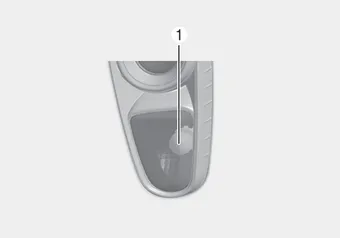

■ Type A

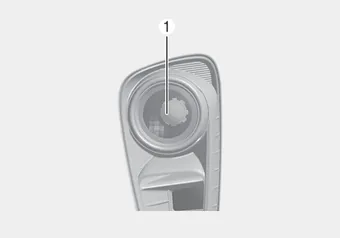

■ Type B
If the DRL (1) does not operate, have the vehicle checked by an authorized Kia dealer.
A skilled technician should check or repair the DRL bulb, for it may damage related parts of the vehicle.
Side marker (front) (LED type) bulb replacement (Headlamp Type B) If the Side marker (LED) (1) does not operate, have the vehicle checked by an authorized Kia dealer.
Side repeater lamp (LED type) bulb Replacement If the side repeater lamp (LED) (1) does not operate, have the vehicle checked by an authorized Kia dealer.
