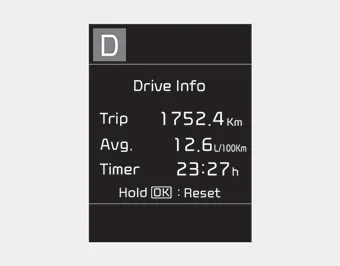

Kia Rio: Trip information (Trip computer) / One time driving information mode (for type B cluster)
The vehicle will display Driving Information once per each ignition cycle.
- Fuel efficiency is calculated after the vehicle has run for more than 300 meters
(0.2 miles).
- The Driving Information will be reset 4 hours after the ignition has been turned
off. So, if the vehicle ignition is turned on within 4 hours, the information will
not be reset.
- If you press the “OK” button for more than 1 second after the Driving Information
is displayed, the information will be reset.
- If the engine is running, the information will be accumulated even when the vehicle
is not in motion.
Digital speedometer ■ Type A ■ Type B This mode displays the current speed of the vehicle. Accumulated driving information mode (for type B cluster) Displays accumulated information starting from a mileage/fuel efficiency/ time default point.
(1) Trip Computer mode This mode displays driving information like the tripmeter, fuel economy, and so on. ❈ For more details, refer to “Trip Computer” in this chapter.
