Kia Rio: Light bulbs / Headlamp (Low/High beam) (Bulb type) bulb replacement (Headlamp Type A)

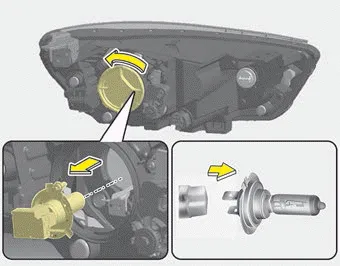

1. Open the hood.

2. Remove the headlamp bulb cover by turning it counterclockwise.

3. Disconnect the headlamp bulb socket-connector.

4. Unsnap the headlamp bulb retaining wire by pressing the end and pushing it upward.

5. Remove the bulb from the head lamp assembly.

6. Install a new headlamp bulb and snap the headlamp bulb retaining wire into position by aligning the wire with the groove on the bulb.

7. Connect the headlamp bulb socket- connector.

8. Install the headlamp bulb cover by turning it clockwise.

Headlamp bulb Side marker (front) (Bulb type)

WARNING - Halogen bulbs

Handle halogen bulbs with care.

• Halogen bulbs contain pressurized gas that will produce flying pieces of glass if broken.

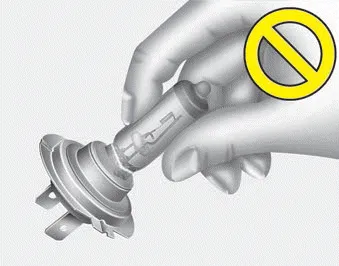

• Always handle them carefully, and avoid scratches and abrasions. If the bulbs are lit, avoid contact with liquids. Never touch the glass with bare hands. Residual oil may cause the bulb to overheat and burst when lit. A bulb should be operated only when installed in a headlamp.
• If a bulb becomes damaged or cracked, replace it immediately and carefully dispose of it.
• Wear eye protection when changing a bulb. Allow the bulb to cool down before handling it.
